Power Protection

---

---

Power Protection General - Presentation

Transcript

- Installation of power protection , effective guard against power fluctuations, over – voltage, transient voltage and Lightning protection according to DIN VDE 0100 part 430 and DIN VDE 0185 part

- Evaluation, planning, installation of power protection equipment, known as N-Valve and S-valve on   location

- Equipment is exclusively manufactured in E.U.

- Test with specialized instruments
Equipment specifications :

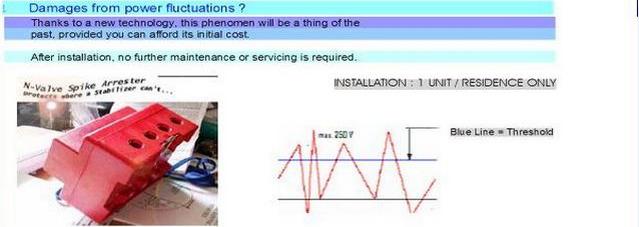

          * N-valves :
          * Dimension : 116 x 90 mm, solid state variable resistors
          * Technical Specifications:
          * Tested according to DIN VDE 0675-6
          * Maximum permissible operating Voltage single PH: 255 V
          * Lightning impact : 100 000 Amp
          * Protection level : 2500 Volts


 Lightning impact spark-over voltage : 4 000 V
          * Pre-Protection in TNS grids : 100 A
          * Short-circuit stability with 100 A fuse : 25 000 A
          * Operating temperature range : 40 -80 degrees C
          * Including remote recording fault contacts, normally closed
          * AC 250 V/ 0.5 A, DC 250 V/ 0,1 A
          * Conductor : max 50 mm square
          * Mounted on DIN EN50022 rail
          * Housing, Master control
          * Application, Design :

N-valve is used for lightning/over voltage protection of subsequent electrical installations, also for protection against direct lightning. The combined N-Valve is conceived in conformity with classes B and C for lightning protection equipotential bonding according to DIN 0110-1.

The unit is a four pole, circuit containing Varistor arranged in parallel and lightning-circuit-proof spark-gaps.  Varistors  alone are able to discharge surge currents in the range of some 10 000 A (waveform 8/20).

The energy at higher impact currents (direct lightning strike) is discharged by the integrated spark gaps. It causes the flash to blow out (quenching chamber openings at the rear of the housing), which means that special installation conditions must be complied with (section 7).

6. Safety instructions

N-Valve is only to be installed by qualified technicians in accordance with DIN regulations, its use is only permitted under the conditions stated and as shown in this instructions.

Especially note that the opening and otherwise tampering with the equipment is not allowed for safety reasons and invalidates the warranty.

Provisions include the following assumptions :
Installation of N-Valve at premises and cover the
entire premises effectively

Installation is preceded by extensive measurements;

          * S-Valves will be mounted where applicable
          * Special installation conditions apply
          * Solid state design ensures a long lifespan of equipment
          * Inspection 1 year free. Tampering by third parties will
          * Void warranty.
          * Installation will be carried out by experts,
          * equipment supplied by Africasiaeuro Limited




for Info contact :
aheneghana[at]gmail.com
Google presentation : power protect
Facebook page         : Facebook
